Tutorial

This tutorial guides you through how to get Charmed Opensearch Dashboards up and running. It also provides a quick introduction to the following:

  • Set up an environment using Multipass with LXD and Juju.

  • Deploy Opensearch Dashboards using a single command.

  • Configure TLS certificate equally simple.

This tutorial focuses on Opensearch Dashboards deployment, assuming that you have familiarity with:

Set up the environment

In this section, you will set up your environment by:

  • installing and setting up Multipass

  • installing Juju and bootstrapping LXD

  • setting up a graphical interface with Multipass

Install and set up Multipass

Multipass is a quick and easy way to launch virtual machines running Ubuntu. It uses the “cloud-init” standard to install and configure all the necessary parts automatically.

Installation of Multipass from Snap and launching a new VM using “charm-dev” cloud-init config goes as:

sudo snap install multipass && \

multipass launch --cpus 4 --memory 8G --disk 30G --name my-vm charm-dev # tune CPU/RAM/HDD accordingly to your needs

The full set of launch parameters is described in the launch command reference.

Multipass commands are generally short and intuitive. For example, to show all running VMs:

multipass list

When the new VM is up and running, connect using:

multipass shell my-vm

You can exit the Multipass VM using Ctrl + D or the exit command.

Install and set up Juju

The next step is to install Juju and initialize LXD (a lightweight container hypervisor).

sudo snap install juju --classic --channel=3.5/stable
sudo snap install lxd
lxd init --auto

Files /var/log/cloud-init.log and /var/log/cloud-init-output.log contain all low-level installation details.

Now that LXD and Juju are installed, the next step is to bootstrap Juju to use local LXD:

juju bootstrap localhost overlord

The controller can work with different models. Most applications such as Opensearch or Opensearch Dashboards. To set up a new “model” called tutorial, run:

juju add-model tutorial

You can now view the model you created above by entering the command juju status. You should see something similar to the following output:

Model     Controller  Cloud/Region         Version  SLA          Timestamp
tutorial  overlord    localhost/localhost  3.5.3    unsupported  14:22:02+02:00

Model "admin/tutorial" is empty.

Set up a graphical interface

There are graphical interfaces available for Multipass (see more details in the Multipass Graphical Interface chapter).

We recommend to use RDP:

sudo apt install ubuntu-desktop xrdp remmina-plugin-rdp remmina
sudo passwd ubuntu # Set password here

Now you should be able to connect using the IP of the earlier Multipass list command:

remmina -c rdp://<IP>

If the environment comes up with a small resolution, use this great Stack Overflow suggestion.

Note that after the graphical setup you may be instructed to restart the Multipass instance. You probably want to do this before installing the services within (as some may require re-initialization after a reboot otherwise).

Get OpenSearch Dashboards up and running

The objective of Opensearch Dashboard is to display the contents of an Opensearch database. This is why a functional Opensearch database is a pre-requisite for the Dashboards application to install successfully.

So, before going further, let’s set up Charmed Opensearch. Note that Opensearch has a mandatory requirement of TLS support, so we need to deploy it alongside the self-signed-certificates charm and integrate (also known as “relate”) them.

Make sure that the environment is ready and the Juju model is correctly configured following instructions in OpenSearch Documentation Set kernel parameters.

Subsequently, we can deploy Opensearch with TLS:

juju deploy opensearch --channel=2/edge -n 2
juju deploy self-signed-certificates --channel=1/stable
juju integrate self-signed-certificates opensearch

We can simply add the Opensearch Dashboards charm to this setup by deploying and relating it to Opensearch

juju deploy opensearch-dashboards --channel=2/edge
juju integrate opensearch opensearch-dashboards

And there we go! Now if you check the status of your services with juju status. Your output should be similar to the example below:

Model      Controller  Cloud/Region         Version  SLA          Timestamp
tutorial   overlord    localhost/localhost  3.5.3    unsupported  16:50:56+02:00

App                       Version  Status  Scale  Charm                     Channel        Rev  Exposed  Message
opensearch                         active      2  opensearch                2/edge         159  no
opensearch-dashboards              active      1  opensearch-dashboards     2/edge          20  no
self-signed-certificates           active      1  self-signed-certificates  1/stable  317  no

Unit                         Workload  Agent  Machine  Public address  Ports     Message
opensearch-dashboards/0*     active    idle   3        10.34.169.173   5601/tcp
opensearch/0                 active    idle   0        10.34.169.84    9200/tcp
opensearch/1*                active    idle   1        10.34.169.242   9200/tcp
self-signed-certificates/0*  active    idle   2        10.34.169.5

Machine  State    Address        Inst id        Base          AZ  Message
0        started  10.34.169.84   juju-df6483-0  ubuntu@22.04      Running
1        started  10.34.169.242  juju-df6483-1  ubuntu@22.04      Running
2        started  10.34.169.5    juju-df6483-2  ubuntu@22.04      Running
3        started  10.34.169.173  juju-df6483-3  ubuntu@22.04      Running

To verify the integrations, add the flag --relations.

juju status --relations

Alternatively, if you want to monitor your system (with a view updating every second):

juju status --watch 1s

Enable TLS encryption

Charmed Opensearch Dashboards supports HTTPS connections. Configuration is similar to what we have seen for Opensearch – we just need to integrate the Dashboards charm against the TLS charm:

juju integrate self-signed-certificates opensearch-dashboards

Once the two charms are successfully related, you should be able to access the same URL now using HTTPS.

Access Opensearch Dashboards

Assuming that you have a virtual environment available (as described in Set up the environment), open a browser and type there the following URL:

http://<dashboards_juju_public_address>:5601

The address of the unit is available in the juju status output of the opensearch-dashboards unit. For example, in the output from Get OpenSearch Dashboards up and running, this would be 10.163.9.173.

You should see something like this:

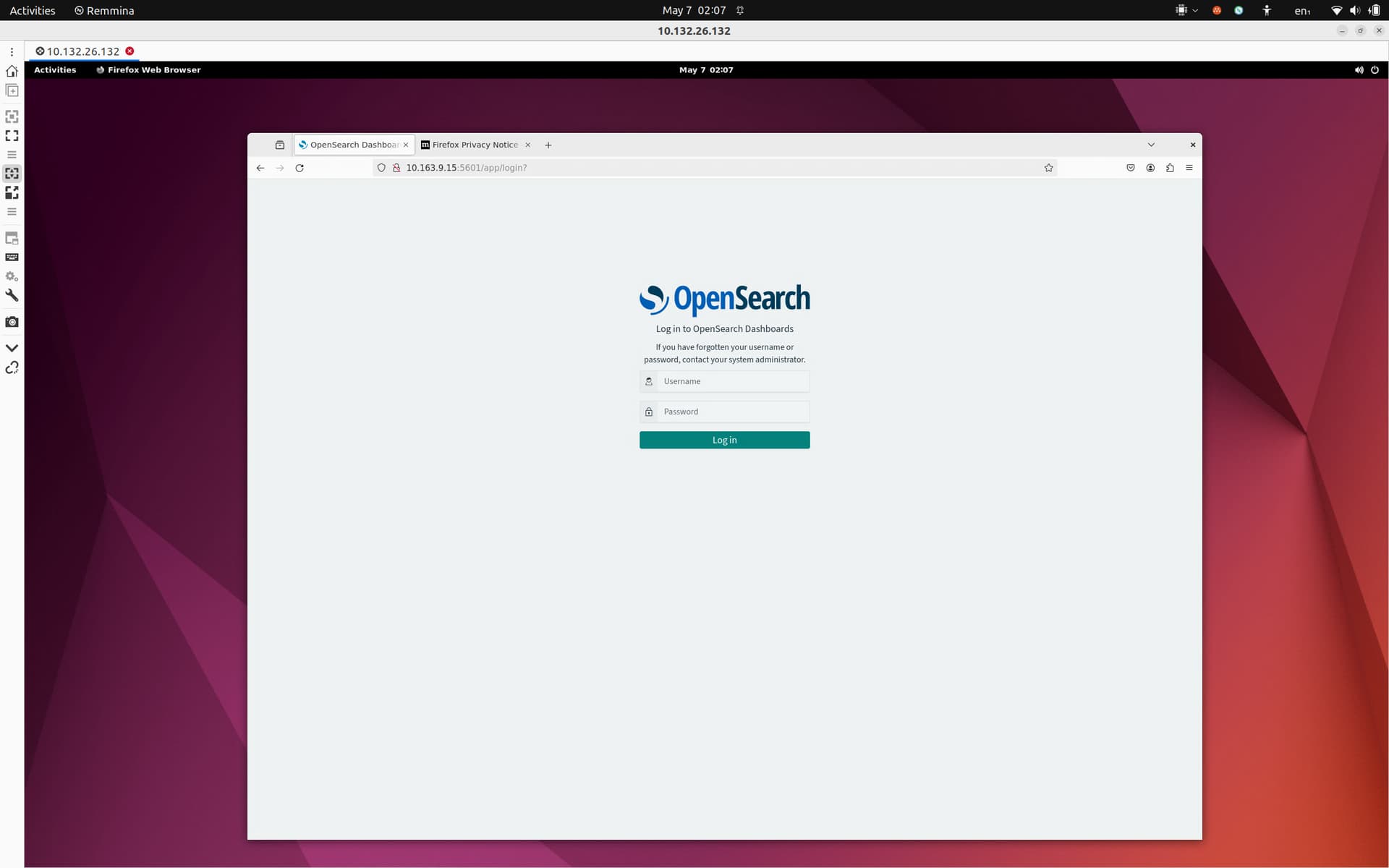

Openserach Dashboards - Multipass Desktop

Set up an Opensearch user

Set up a user using the data-integrator charm.

At deployment time the Opensearch index (in the example: index_name) has to be specified as well. This is an arbitrary, alphanumerical identifier of the users’ data space in Opensearch.

User creation takes affect when integrated against the opensearch charm.

juju deploy data-integrator --config index-name=<intex_name>
juju integrate data-integrator opensearch

Note

This user will have normal privileges – meaning this user will only have access to the index it owns.

In case a broader access to the cluster’s indices is needed, it is possible to create an admin / privileged user as follows:

juju deploy data-integrator admin --config index-name=admin-index --config extra-user-roles="admin"

Caution

Please only create admin users when extremely needed, and handle with special care as authenticating with an admin user grants full access to all indices in the cluster.

Retrieve user credentials running

juju run data-integrator/0 get-credentials

at the bottom of the output you should see something like:

password: 8kubD7nbWYZFHPVEzIVmTyqV42I7wHb4
<CA certificate here>
username: opensearch-client_15

Create the “index pattern”

Log in to the Dashboard using these credentials. Clicking the top left icon the main menu will pull down. Select Management / Dashboards Management here

Opensearch Dashboards - Initial view

Select Index patterns on the next view:

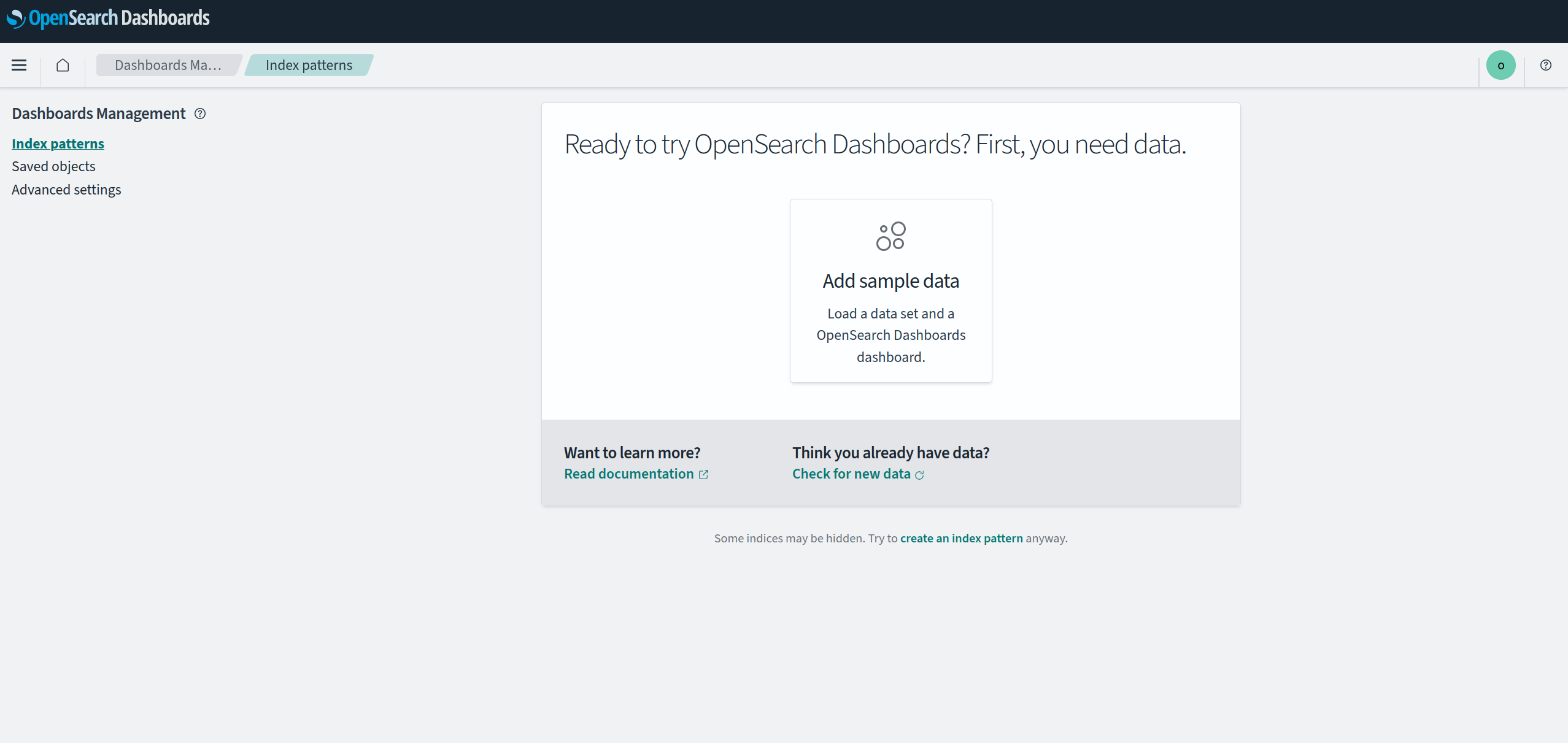

Opensearch Dashboards - Index patterns

Click on create index pattern at the bottom.

Adding the index name that used for data-integrator deployment (in our example: testing) as an index pattern enables Dashboard access to the user’s Opensearch space.

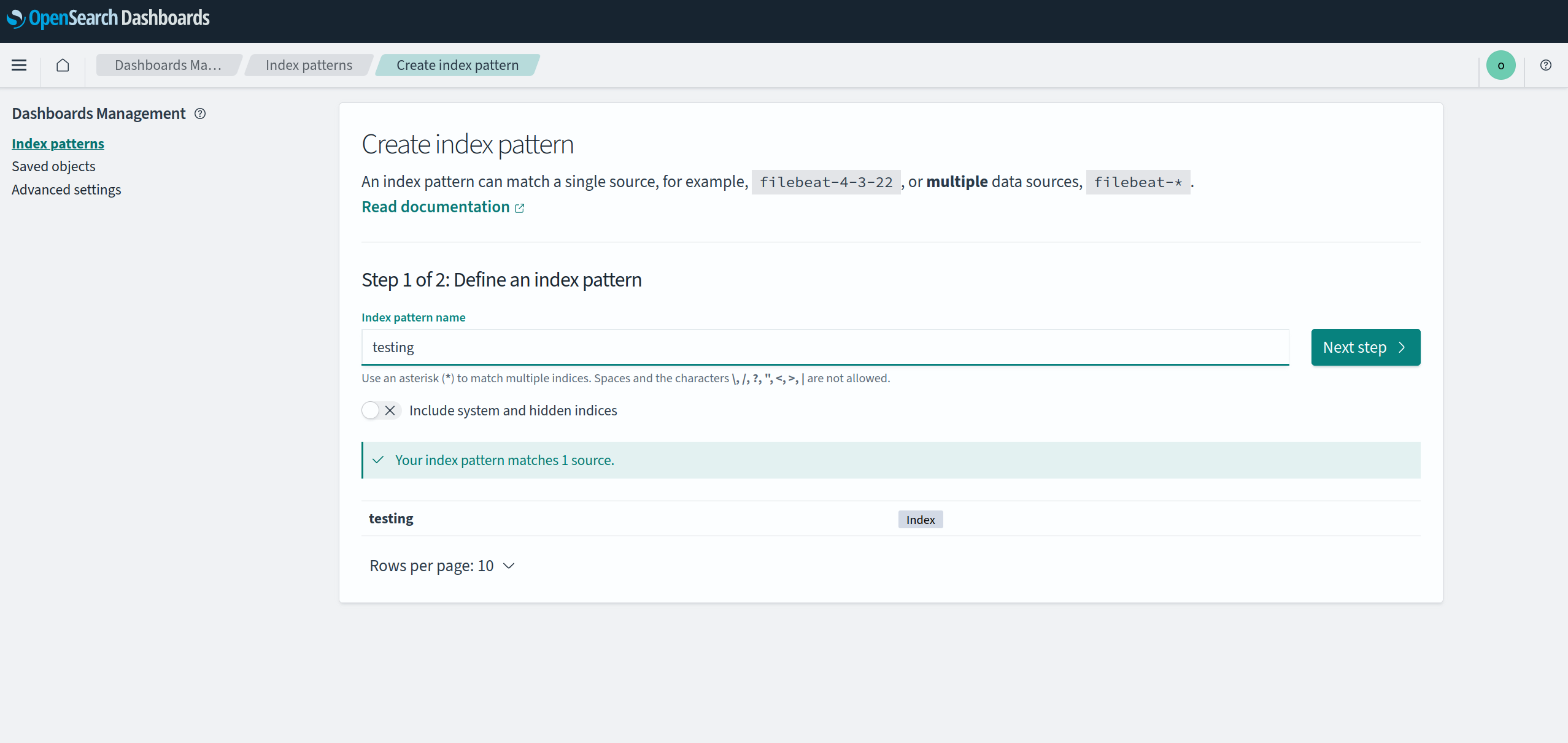

Opensearch Dashboards - Create index pattern

Click on the Next step button, and finalize the index pattern creation.

As a verification, the user’s index metadata will display.

Add and visualize data

For test purposes, a simple method could do. Like generating data from the command-line, via the Opensearch API:

for ID in `seq 1 100`
do
    curl -sk -u opensearch-client_15:8kubD7nbWYZFHPVEzIVmTyqV42I7wHb4 \
    -XPUT https://10.4.151.211:9200/testing/_doc/${ID} \
    -H "Content-Type: application/json" \
    -d '{"test": "This is test ${ID}"}'
done

This is how raw data gets displayed in the Dashboard

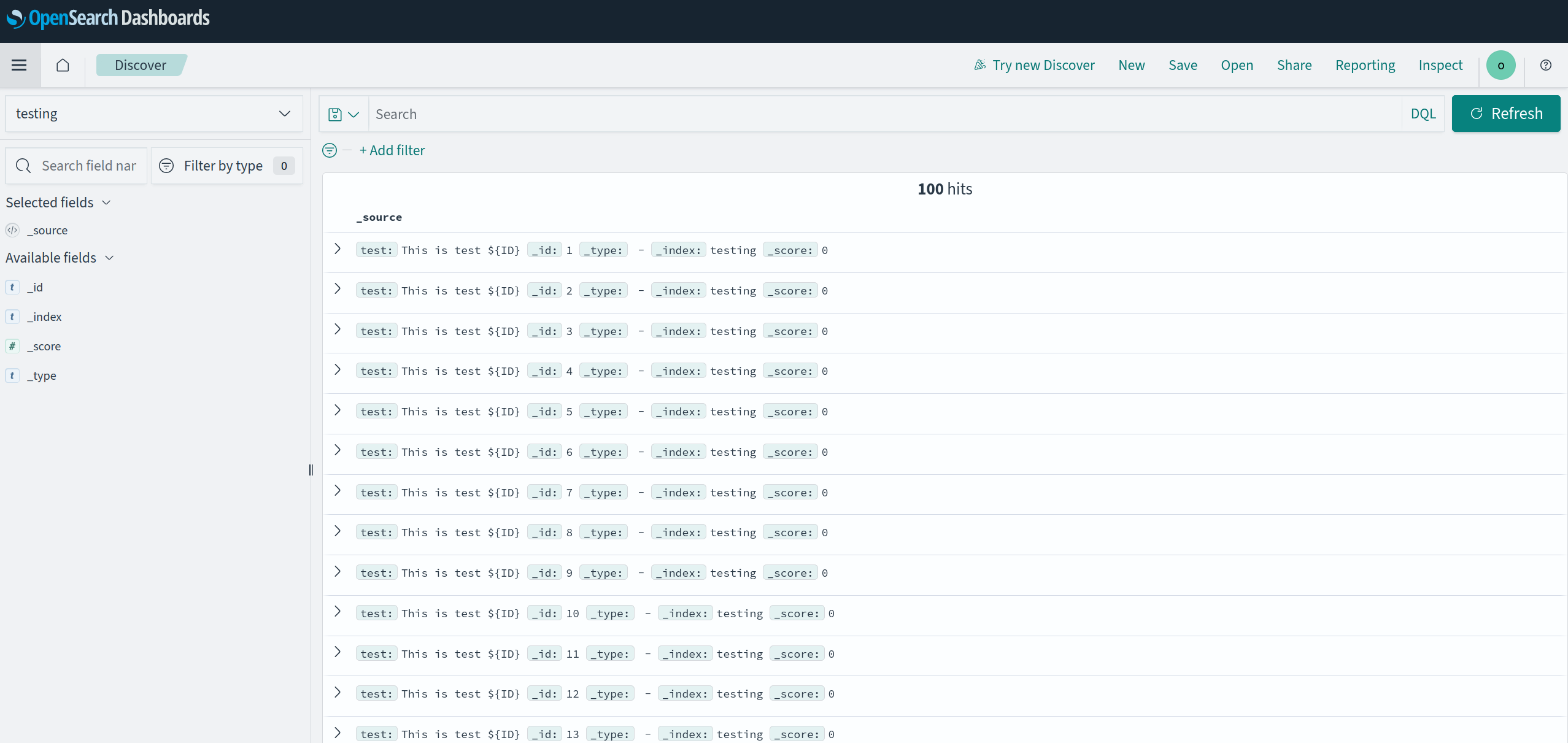

Opensearch Dashboards - Data

Data Visualization

Opensearch Dashboards offers a variety of diagrams and data displays.

Choose Dashboards in the main left-side menu, and you will be presented to the selection:

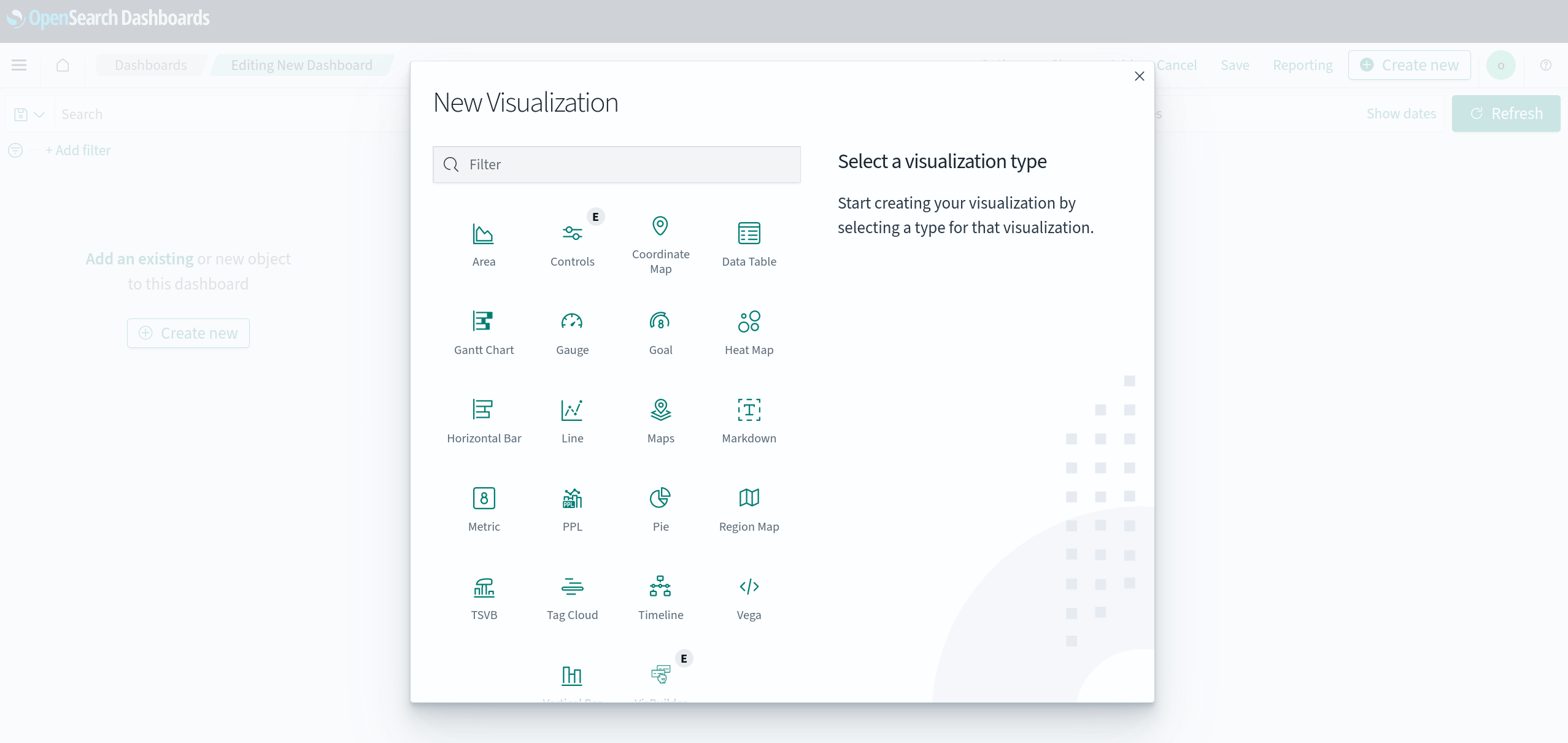

Opensearch Dashboards - Visualization

Clean up the environment

In case you may want to remove the Juju model, you should run:

juju remove-model tutorial --force --timeout 1s

If it’s the whole Multipass instance that you would like to delete, you should execute this command:

multipass delete --purge my-vm

What’s next?

Congratulations! You have successfully deployed Charmed OpenSearch Dashboards, configured TLS encryption, and explored data visualization capabilities.

To continue your journey with Charmed OpenSearch Dashboards:
